Products

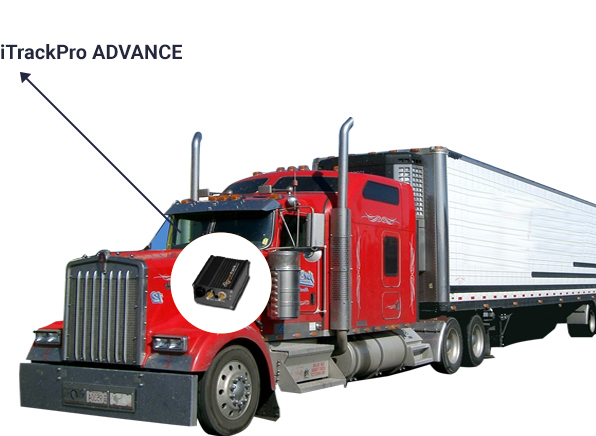

iTrackPRO ADVANCE

The iTrackPro Advance is a system based on GPS/GPRS technology developed and designed for vehicle tracking and fleet management in real time. It has a GPS module incorporated that allows to get accurate position data and use its GSM module to send the information to preconfigured server or cellphone. Its internal memory allows to storage the GPS coordinates when there is no GPRS coverage or in time intervals configured by the user.

iTrackPRO Specifications
  • gsm
    Remote Configuration via GSM and GPRS
  • gps
    Dynamic Report in real time
  • Overspeed
    Overspeed alert
  • Geofence
    Exit from a configured zone
  • Data Logger
    Position data storage
  • Quad-Band
    850/900/1800/1900

Main Functionalities

SMS and GPRS TCP/UDP Communication Tracking on demand
Vehicle tracking from your cellphone. Tracking per time intervals.
Remote hearing through calls (optional) Storage when there is no coverage.
Datalogger capabilities, 130.000 waypoints (optional) Movement sensor included for power saving.
Panic button Motion alert
Geofence configuration Battery low charge alert
Overspeed alert Remote Engine block
iTrackPro ADVANCE Datasheet

Main Features

Power supply: +9V to +36VDC. Back up Battery: 850mAh. Normal power consumption of 28mA/h.
Dimensions: 104mm x 62mm x 24mm. Weight: 450g. Operation temperature: -20º to 55º C.
Humidity: 5% to 95%. Frequency: QuadBand GSM 850/900/1800/1900Mhz. GPS Module: last GPS SIRF-Star III chipset.
GPS Sensitivity: -158Db. GPS frequency: L1, 1575.42 MHz. Channels: 20 channels all-in-view tracking.
Position accuracy: 10 meters, 2D RMS. Velocity accuracy: 0.1 m/s. Datum by default: WGS-84.
Altitude limit: 18,000 meters (60,000 feet) max. Speed limit: 515 meters/seconds max. Led: 2 leds to show the GPS/GSM status.
Flash Memory: 8 MB. Button: One SOS button. Interface: 5 digitals inputs, 5 digitals outputs and 2 analogue inputs.
